Graphite Rotor

Port：Qingdao Port

Packing：Plywood Case

Delivery time：5-7days

Minimum order quantity：50 pieces

Supply Ability：10000 pieces/month

Products
Detail
Physical And
Chemical Index
Packing
Related
Products
Inquiry
Now

Product Description

Density is generally default to 1.7g / cm3, our graphite rotor after antioxidant treatment density can be achieved 1.75-1.78g / cm3, making it long life.

whether antioxidant treatment, depending on customer demand, the general needs of customers drawings.

Application

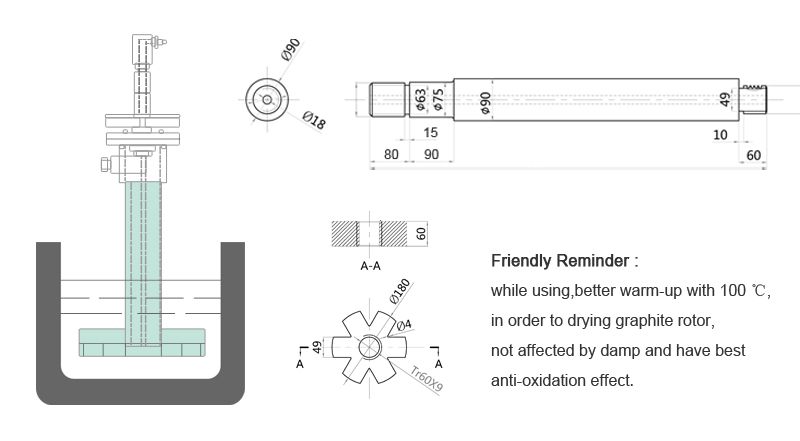

The main input for the aluminum solution argon or nitrogen, and rotate 750 degrees below and strongly agitated molten aluminum, making aluminum melt into the argon or nitrogen to break up the formation of many small bubbles dispersed in the liquid metal, while rotating the rotor also contributed to hydrogen within the aluminum melt inclusions spread, making contact with the air bubbles in the melt by gas partial pressure and surface adsorption principle, to absorb the melt hydrogen adsorption oxide slag, and with the bubbles rise and was taken out of the melt surface, the melt to be purified.

Advantage:

1. Without contamination of impurities

2. High resistance to high temperature, lower down oxidation speed.

3. Excellent self-lubrication

4. Remarkable chemical corrosion resistance

5. High thermal conductivity and good thermal stability

6. Adequate mechanical strength and shock resistance

FAQ

1.When can i get the price?

We usually quote within 24 hours after getting your detailed requirements,like size,quantity etc.

If it is an urgent order, you can call us directly.

2. Do you provide samples?

Yes, samples are available for you to check our quality.

Samples delivery time will be about 3-10 days.

3.What about the lead time for mass product?

The lead time is based on the quantity,about 7-12days.For graphite product,apply Dual-use

items license need about 15-20working days.

4.What is your terms of delivery?

We accept FOB, CFR, CIF, EXW, etc. You can choose the most convenient way for you. Besides that,

we can also shipping by Air and Express.

5.Product packaging?

We are packed in wooden cases, or according to your requirements.

6.Notice

The actual price will depends on raw materials,exchange rate ,wage and your order quantity .

Hope to cooperation with you,Thanks !

项目/Items		单位/Unit	技术指标/Specification
颗粒度/Grain Size		mm	0.045-0.8
体积密度/Bulk Density		g/cm3	1.75-1.85
电阻率/Resistivity		μΩ•m	8-10
抗折强度/Bending Strength		Mpa	18-36
抗压强度/Compressive Strength		Mpa	36-75
热膨胀系数/C.T.E		×10^-6/ ℃	2.9-3.0
灰分/Ash		%	0.1
圆形 Round	直径/Diameter	mm	10-400
	长度/Length	mm	≤3050
产品尺寸也可按照订单要求加工 Products can be processed as order requirement or drawings.

Product Name	Industry	Application
Crucible,Boat,Dish,etc.	Metallurgy	Melting,refining and analysis
Dies,Molds,Ingot Chassis,etc.		EDM graphite electrodes,semiconductor manufacturing,iron,steel and nonferrous metal making,continuous casting,metallurgy pressing machine
Graphite Roller,etc.		Heat treatment of steel plate in furnace
Conduit,Skateboard,etc.		Aluminum molding
Graphite Pipe		Guard pipe for measuring temperature,blowpipe,etc
Graphite Block		Masonry furnace and other heat resistance material
Chemical Equipment	Chemistry	Heat exchanger,reaction tower,distillation columns,absorption equipment,centrifugal pumps,etc
Electrolytic Plate		Salt solution and baking molten salt electrolyte
Electrolytic Mercury		NaCI electrolyte
Grounded Anode		Electrical anticorrosion
Motor Brush	Electricity	Commutator,slipping ring
Current Collector		Skate,slide,trolley
Contact		Switches,relays
Mercury Ferry And Electronic Pipe	Electronics	Anode,grid pole,repeller pole,ignition pole of the Mercury rectifier and anode,grid electrode
Graphite Bearing	Machinery	High temperature resistance sliding bearing
Sealing Element		Sealing ring,stuffing box seal,packing seal
Product Element		Braking in plane and vehicle
Nuclear Graphite	Nuclear Power	Deceleration materials,reflective materials,shielding materials,nuclear fuel,support devices,etc
