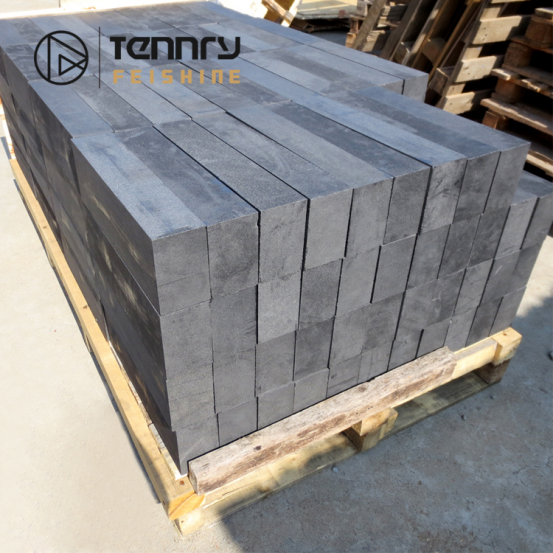

The forming methods of graphite bricks include moulding, extrusion, vibration and isostatic pressure.

Characteristics of graphite bricks:

1.Low electric resistance,

2.Good electric and thermal conductivity,

3.High oxidation resistance,

4.Greater resistance to thermal and mechanical shock,

5.High mechanical strength,

6.High machining accuracy and so on.

Application:

1. Refractory material:

Widely used in the metallurgical industry.

2. Conducting material:

In the electronics industry, widely used for graphite electrode, brush,, etc

3. Wear-resisting material and lubricant:

Use graphite as wear-resisting and lubrication materials, can be 100m/s speed sliding in - 200 ~ 2000 °C temperature range, no or less lubricanting oil.

4. Sealing material:

 It can be as sealing ring in the equipment, such as centrifugal pump, hydraulic turbine ,etc.

5. Anticorrosion material:

Widely used in petroleum, chemical, hydrometallurgy departments.

6. Protection materials:

Insulation, high temperature resistant, radiation

7. Furnace parts:

resistance heating elements, induction susceptor, structural elements and charging plates, furnace linings, heat shields and covers for pulling monocrystalline silicon or optical fibers, etc.

8. Anodes for the electrolysis of metals.

9. Parts for heat exchangers.


physical and chemical index:

项目/Items

单位/Unit

技术指标/Specification

颗粒度            GrainSize

mm

0.045-4

体积密度          Bulk Density

g/cm3

1.65-1.85

电阻率            Resistivity

μΩ•m

6.0-11.0

抗折强度     Flexural Strength

Mpa

18-36

抗压强度  Compressive Strength

Mpa

36-75

热膨胀系数               C.T.E

×10-6/

2.9-3.0

灰分                       Ash

%

0.1-0.3

圆形

Round

直径        Diameter

mm

5-1100

长度          Length

mm

1-3050

方形

Square

长            Length

mm

≤3050

宽             Width

mm

≤1000

高            Height

mm

≤600

产品尺寸也可按照订单要求加工

Products can be processed as order requirement or drawings.


Packaging Details:

standard wooden case with bubble paper package or according to customer‘s requirement
Delivery Detail:within 5 days after receiving downpayments .
