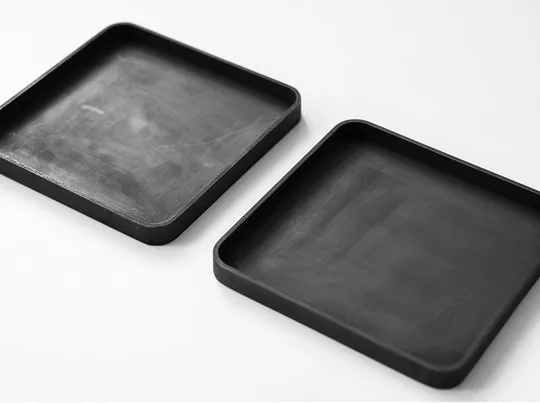

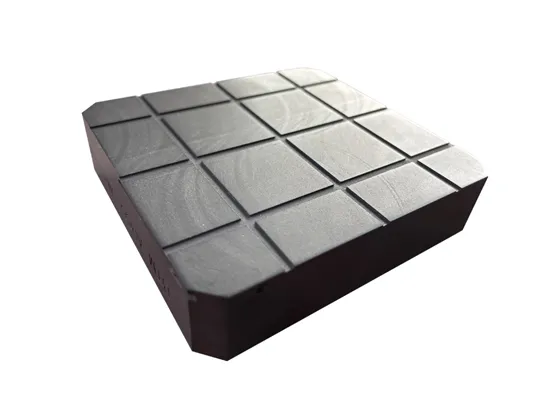

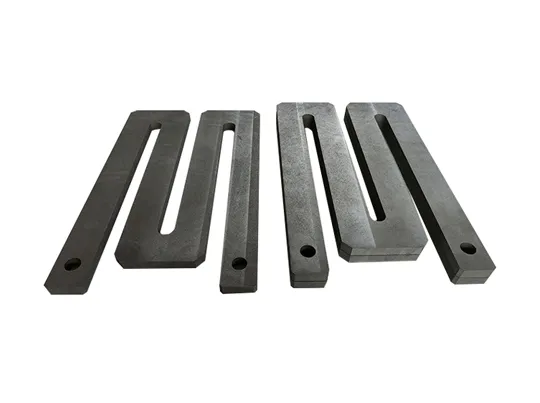

Graphite molds are widely used for high-temperature forming and sintering processes. Made of high-purity graphite material, they feature outstanding thermal stability, low thermal expansion and excellent thermal-shock resistance. Boasting good heat conductivity, high mechanical strength and superior oxidation resistance, they withstand repeated high-temperature cycles. Easy-to-machine for custom sizes and complex structures, they deliver stable performance and long service life, ideal for metal casting, sintering and hot-pressing across multiple industrial applications.
Index | Units | FSM-1 | FSM-2 | FSMK-3 | FSMK-5 | FSMK-5S | FSMW-4 | FSMW-5 |
Bulk density | ≥g/cm3 | 1.6 | 1.7 | 1.68 | 1.8 | 1.85 | 1.75 | 1.85 |
Electric resistivity | μΩ.m | 8 | 7.5 | 9-13 | 8-10 | 8-10 | 8.5 | 8.5 |
Compressive strength | Mpa | 28 | 36 | 45 | 70 | 80 | 65 | 85 |
Flexural strength | Mpa | 14 | 18 | 20 | 35 | 40 | 38 | 46 |
Shore hardness | 25 | 30 | 35 | 48 | 55 | 42 | 48 | |
Ash content/ purification | ppm | 2000/- | 2000/- | 1000/50 | 1000/50 | 1000/50 | 1000/50 | 1000/50 |
Average granularity | μm | 2000,4000 | 800,2000 | 15-45 | 15-45 | 15-45 | 14-45 | 14-45 |
Coefficient of thermal expansion | ×10-6/℃ | 5.8 | 5.7 | 5.7 | 4.9 | 4.8 | 5.46 | 4.75 |
Young’s modulus | Gpa | 7 | 8 | 8 | 9.5 | 10 | 9 | 11.8 |
Excellent thermal conductivity for fast heat dissipation and stable casting forming.
Superior high-temperature self-lubrication reduces friction between mold and ingot, delivering smooth casting surface without scratches.
High mechanical strength and outstanding wear resistance for continuous long-time casting operation.
High-purity graphite material with low impurity content, preventing contamination for non-ferrous, precious metals and stainless steel.
Good anti-oxidation performance via special impregnation treatment to slow high-temperature ablation.
Excellent thermal-shock resistance, resistant to rapid heating and cooling, suitable for horizontal and up-drawing vertical continuous casting.
Precision-machined cavity with strict dimensional tolerance, ensuring consistent casting dimension.
Wide applicability for brass, red copper, gold, silver, platinum, steel and stainless steel continuous casting.
Carefully selected high-purity graphite raw material with low ash content.
High-pressure/isostatic pressing for dense and uniform blank body.
High-temperature baking & sintering to improve mechanical and high-temperature performance.
Anti-oxidation vacuum impregnation to seal pores and extend service life.
Precision CNC machining for accurate cavity dimension and fine surface finish.
Comprehensive inspection on fixed carbon, density, mechanical strength and dimensional accuracy before delivery.
