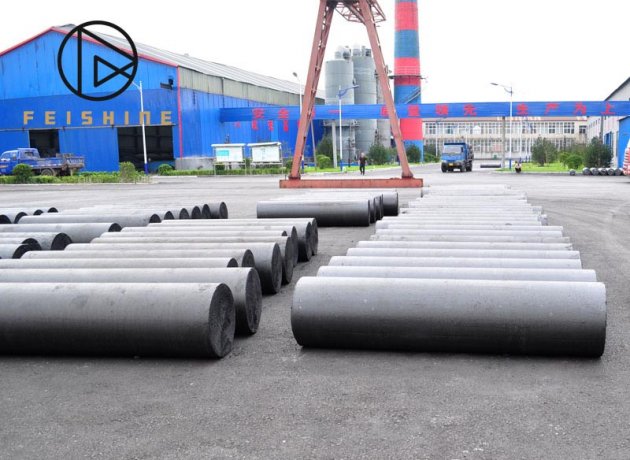

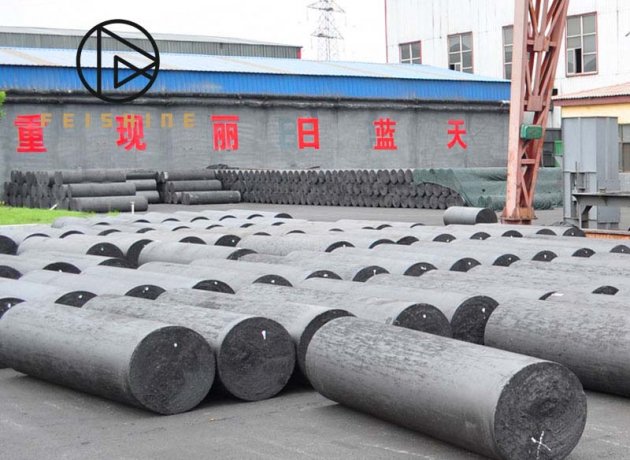

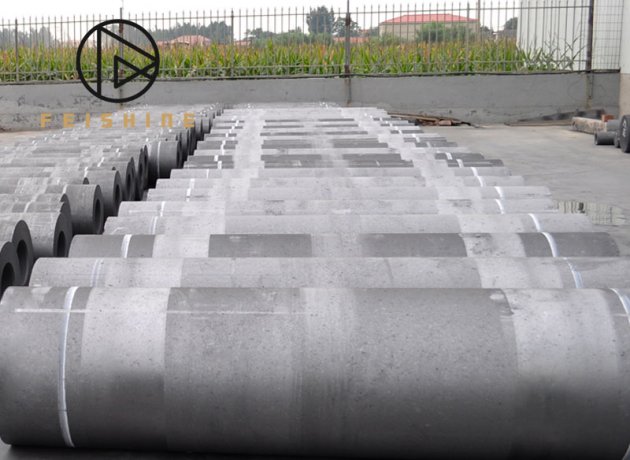

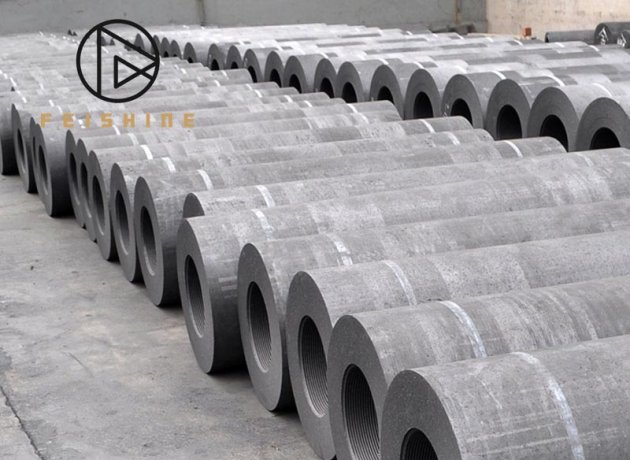

Artificial graphite electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, so it is the best conductive material for electric arc furnace and smelting furnace.

Notes of the use of graphite electrode

1.The electrode holder should be held in the place beyond the security line of the top electrode;otherwise, the electrode would be easily broken.the contact surface between the holder and the electrode should be cleaned up regularly to maintain a good contacting,the cooling jacket of the holder shall be avoided from water leakage.

2.Identify the reasons it there is gap in the electrode junction,do not use them until the gap is eliminated.

3.If there is falling off of nipple bolt when connecting electrodes,it is necessary to complete the nipple bolt.

4.The application of electrode should avoid of tilting operation, particularly , the gr.oup of connected electrodes should not be put horizontally so as to prevent from breaking.

5.When charging materials to the furnace,the bulk materials should be charged to the place of the furnace bottom,so as to minimize the impact of the large furnace materials on the electrodes.

6.The large pieces of insulation materials should be avoided of stacking on the bottom of the electrodes when smelting .so as to prevent from affecting the electrode use,or even broken.

7.Avoid of collapsing the furnace lid when rising or dropping the electrodes,which may result in electrode damage.

8.It is necessary to prevent the steel slag from splashing to the threads of the electrodes or nipple stored in the smelting site,which may damage the precision of the threads.


性能

Properties

     单位

Unit

                      石墨电极公称直径

              Nominal Diameter Of Electrode



UHP

HP

RP



300-600 mm

650-800mm

300-800mm

300-800mm

电阻率

Electric resistivity

电极Electrode

μΩ.m

4.8-5.8

4.6-5.8

5.8-6.6

7.8-8.8

接头Nipple


3.8-4.5

3.8-4.5

4.2-5.0

5.0-6.5

抗折强度

Flexural strength

电极Electrode

Mpa

10.0-14.0

10.0-14.0

10.0-13.0

7.0-12.0

接头Nipple


20.0-26.0

22.0-26.0

18.0-22.0

15.0-20.0

弹性模量

Young’s modulus

电极Electrode

Gpa

9.0-13.0

10.0-14.0

8.0-12.0

7.0-9.3

接头Nipple


15.0-18.0

15.0-18.0

14.0-16.0

12.0-14.0

体积密度

Bulk density

电极Electrode

g/cm3

1.68-1.74

1.70-1.74

1.62-1.66

1.53-1.56

接头Nipple


1.77-1.82

1.78-1.84

1.74-1.80

1.70-1.74

热膨胀系数

CTE(100-600℃)

电极Electrode

×10-6/

1.1-1.4

1.1-1.4

1.6-1.9

2.2-2.6

接头Nipple


0.9-1.2

0.9-1.2

1.1-1.4

2.0-2.5

灰分Ash


0.3

0.3

0.3

0.5


石墨电极规格及允许偏差 Sizes and permissible variation of graphite electrode

公称直径Nominal Diameter

实际直径Actual Diameter(mm)

实际长度Actual Length(mm)

mm

in

最大Max

最小Min

黑皮部分最小Black cover part

长度Length

长度允许偏差Tolerance

短尺长度Short ruler sizes

200

8

205

200

197

1600 1800

±100

-275

250

10

256

251

248

300

12

307

302

299

350

14

357

352

349

400

16

409

403

400

1600 1800 2000 2200

450

18

460

454

451

500

20

511

505

502

550

22

562

556

553

600

24

613

607

604

石墨电极建议电流负荷表 Product current carrying capacity table

公称直径Nominal Diameter

允许电流负荷Current carrying capacity

普通功率石墨电极 RP

高功率石墨电极HP

超高功率石墨电极UHP

mm

A

A/cn2

A

A/cm2

A

A/cm2

200

5000-6900

15-21

5500-9000

18-25



250

7000-10000

14-20

8000-13000

18-25



300

10000-13000

14-18

13000-17400

17-24

15000-22000

20-30

350

13500-18000

14-18

17400-24000

17-24

20000-30000

20-30

400

18000-23500

14-18

21000-31000

16-24

25000-40000

19-30

450

22000-27000

13-17

25000-40000

15-24

32000-45000

19-27

500

25000-32000

13-16

30000-48000

15-24

38000-50000

18-27

550

31000-41000

13-16

37000-58000

15-23

45000-65000

18-27

600

37000-45000

13-16

42000-65000

15-23

52000-75000

18-26



Packing

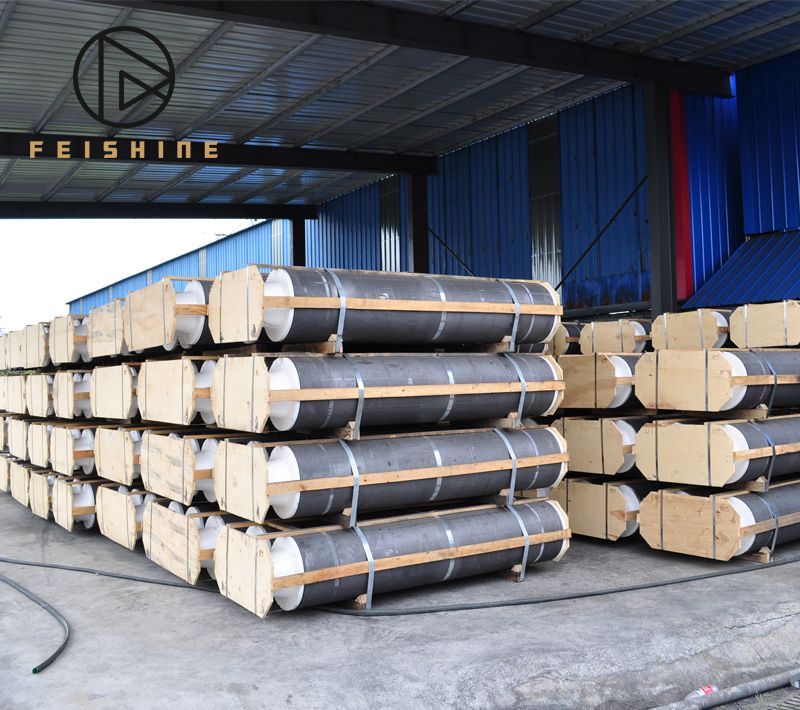

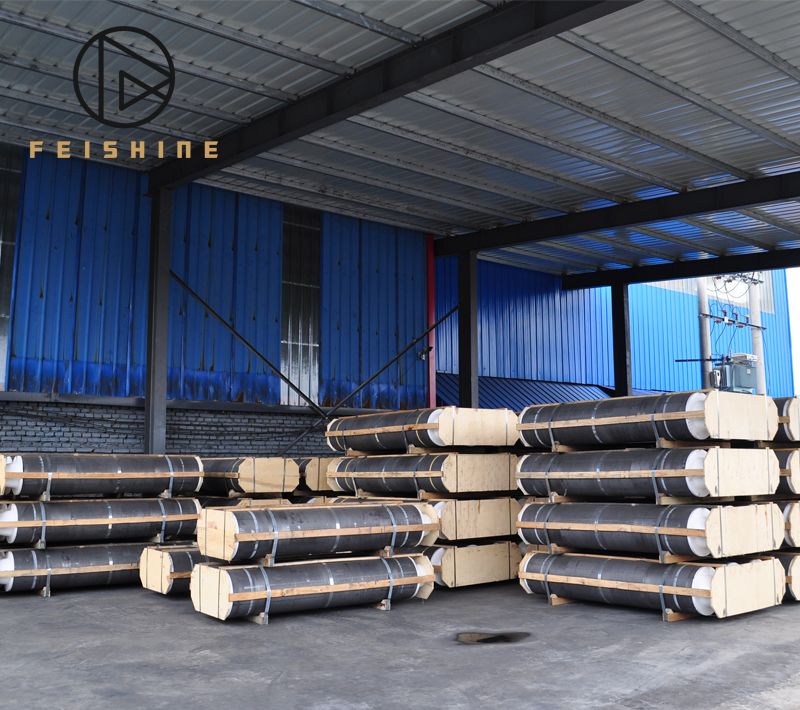

Graphite electrode is packaged by wooden cages and nipple is packaged by wooden boxes.graphite electrode and nipple can be packaged together according to the requirements of the customers.the products are protected by waterproof and dustproof plastic inside and fixed by steel bands,fit for road and sea transportation .
